Product Specifications

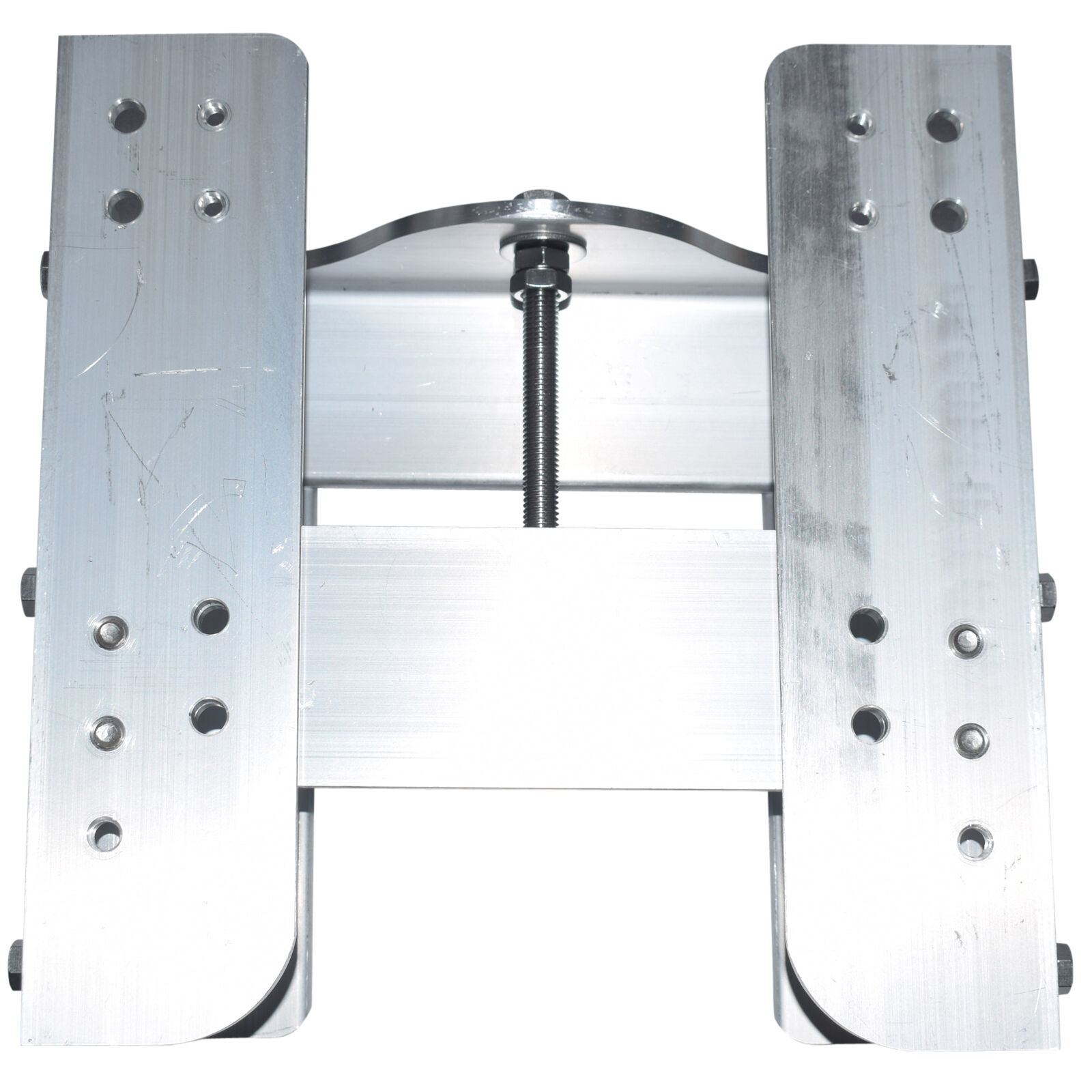

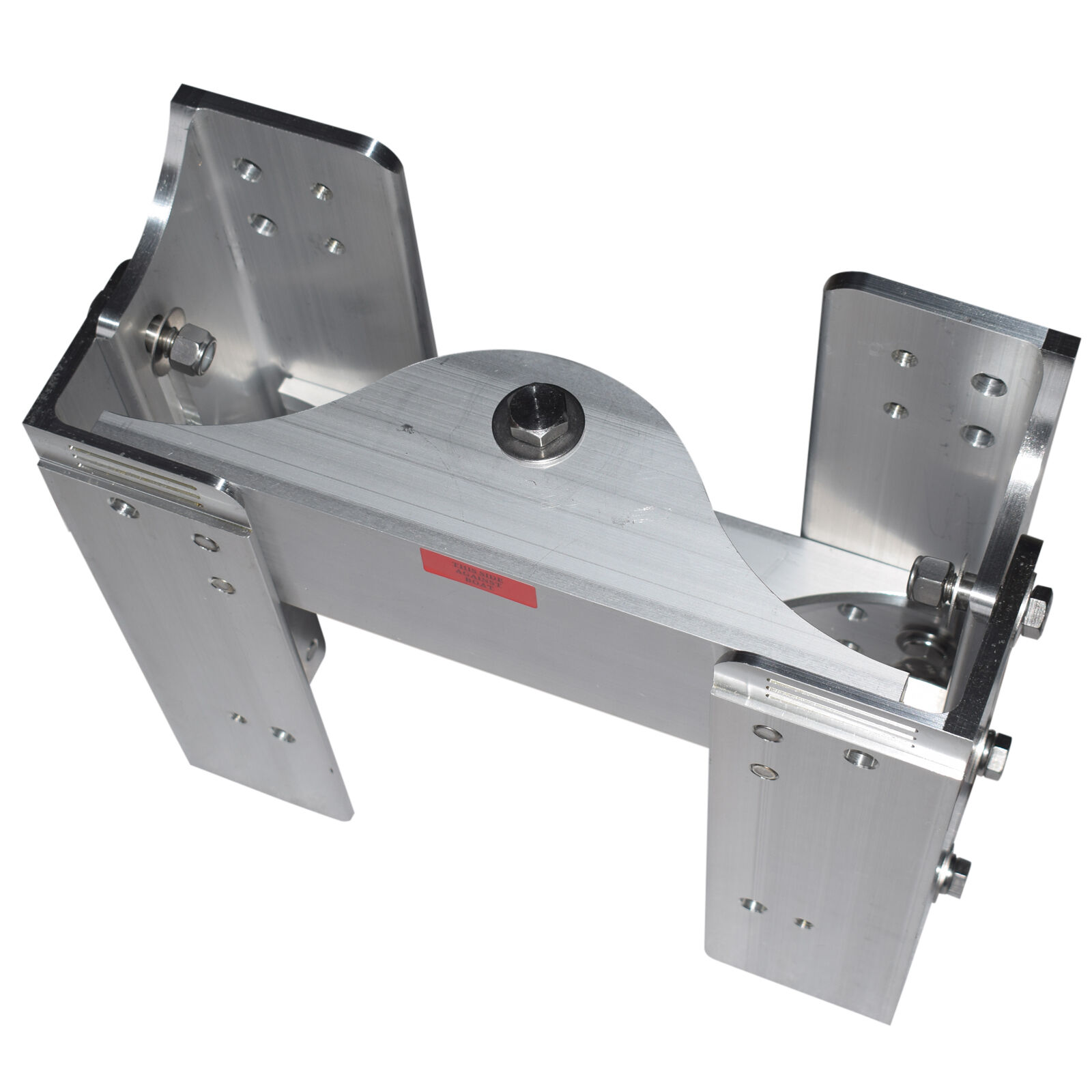

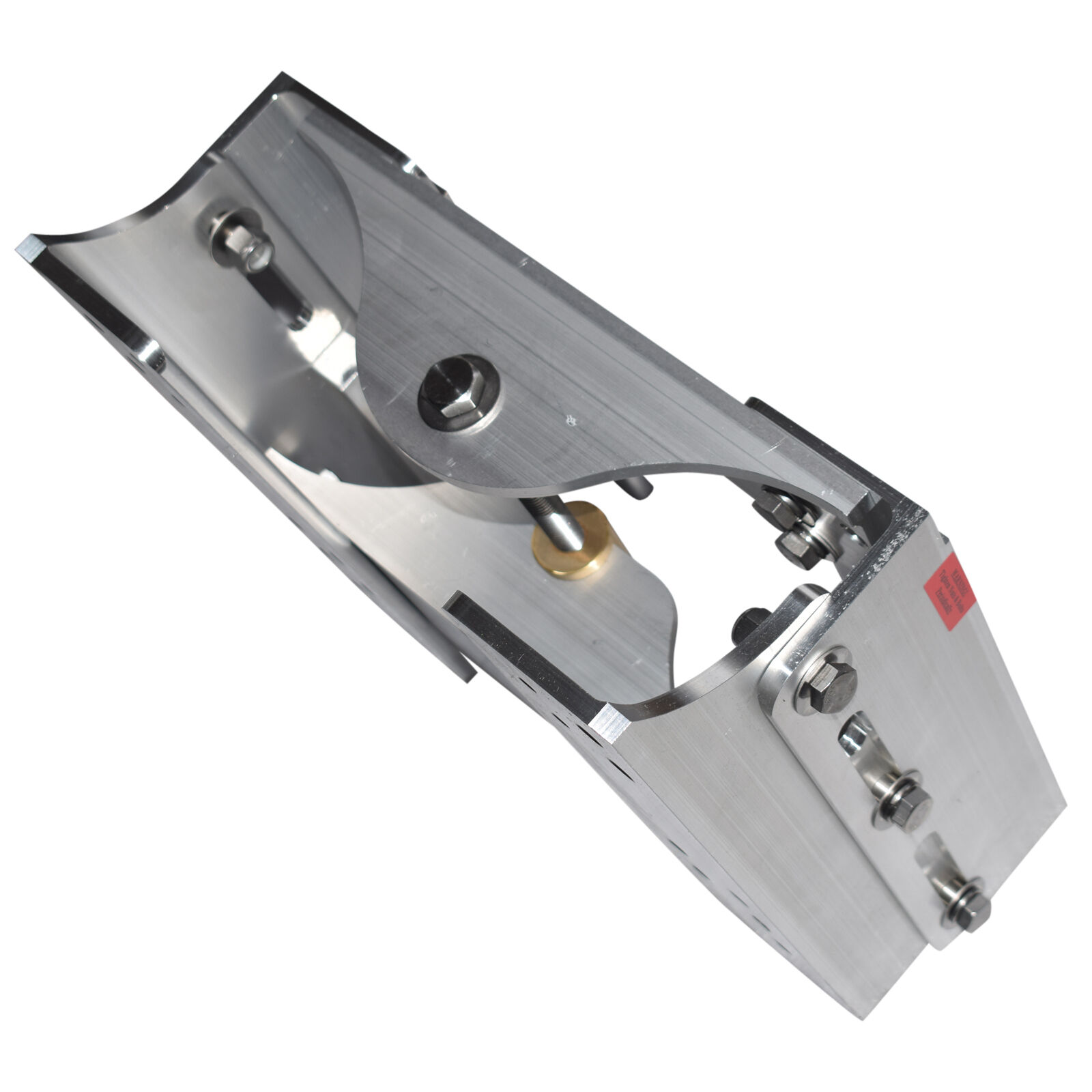

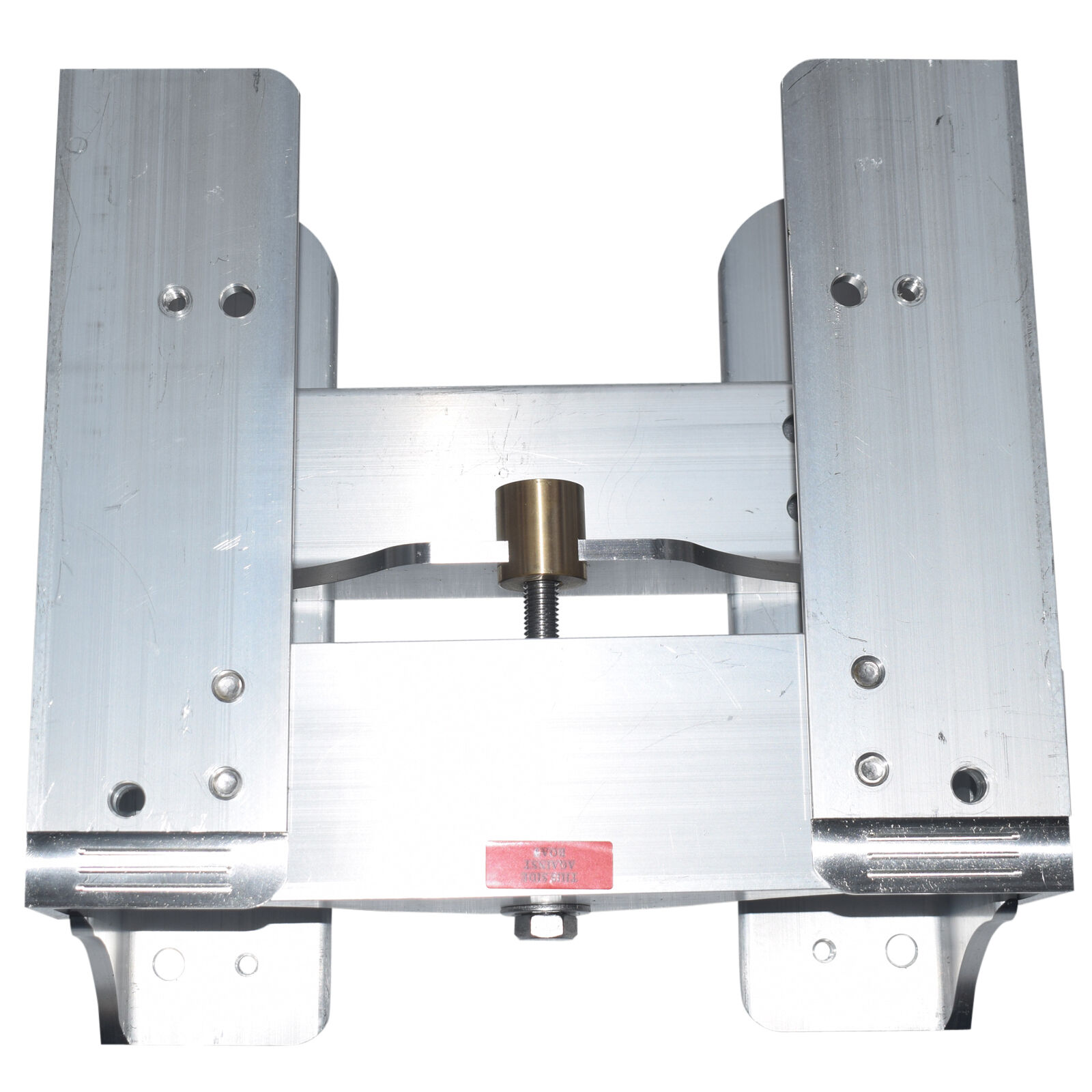

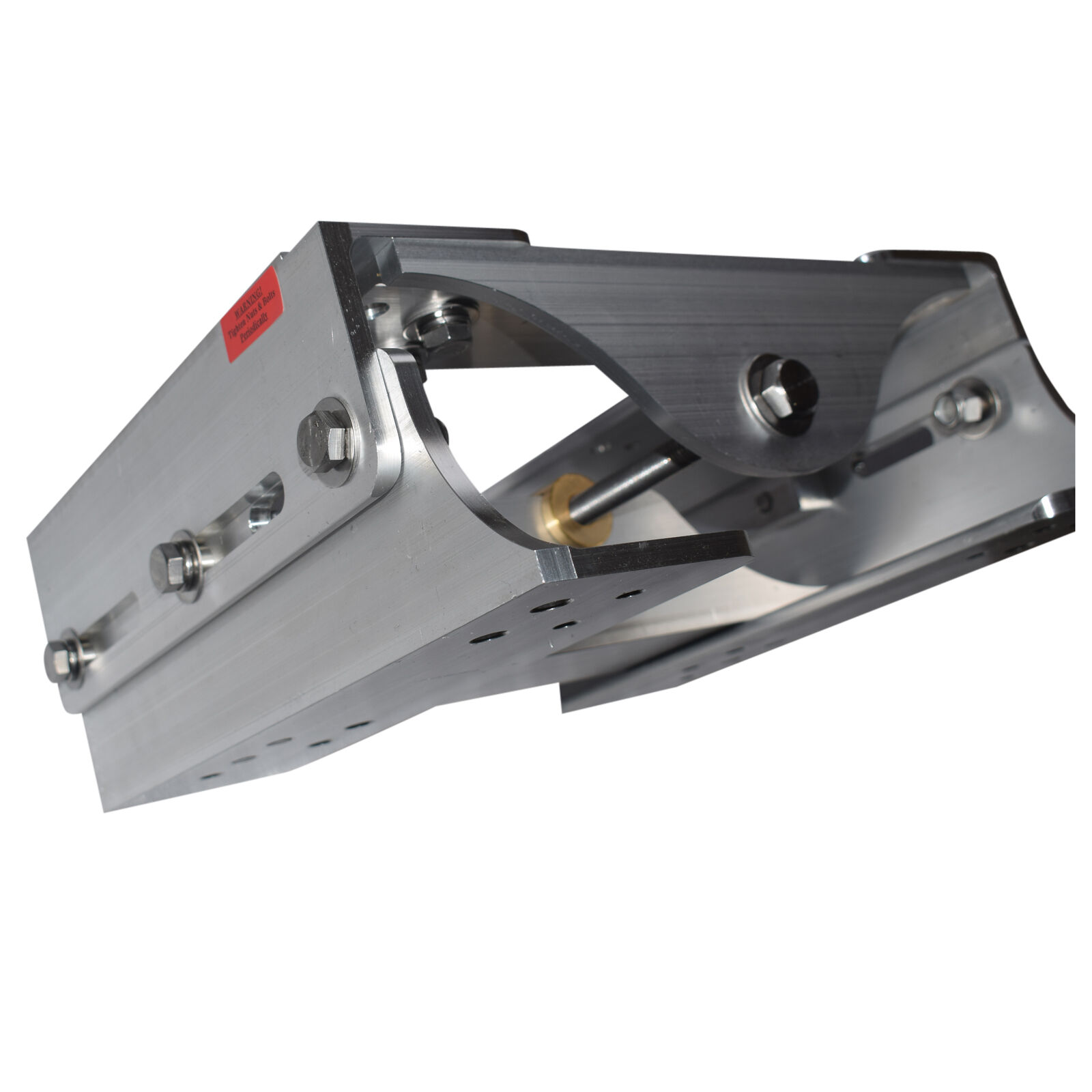

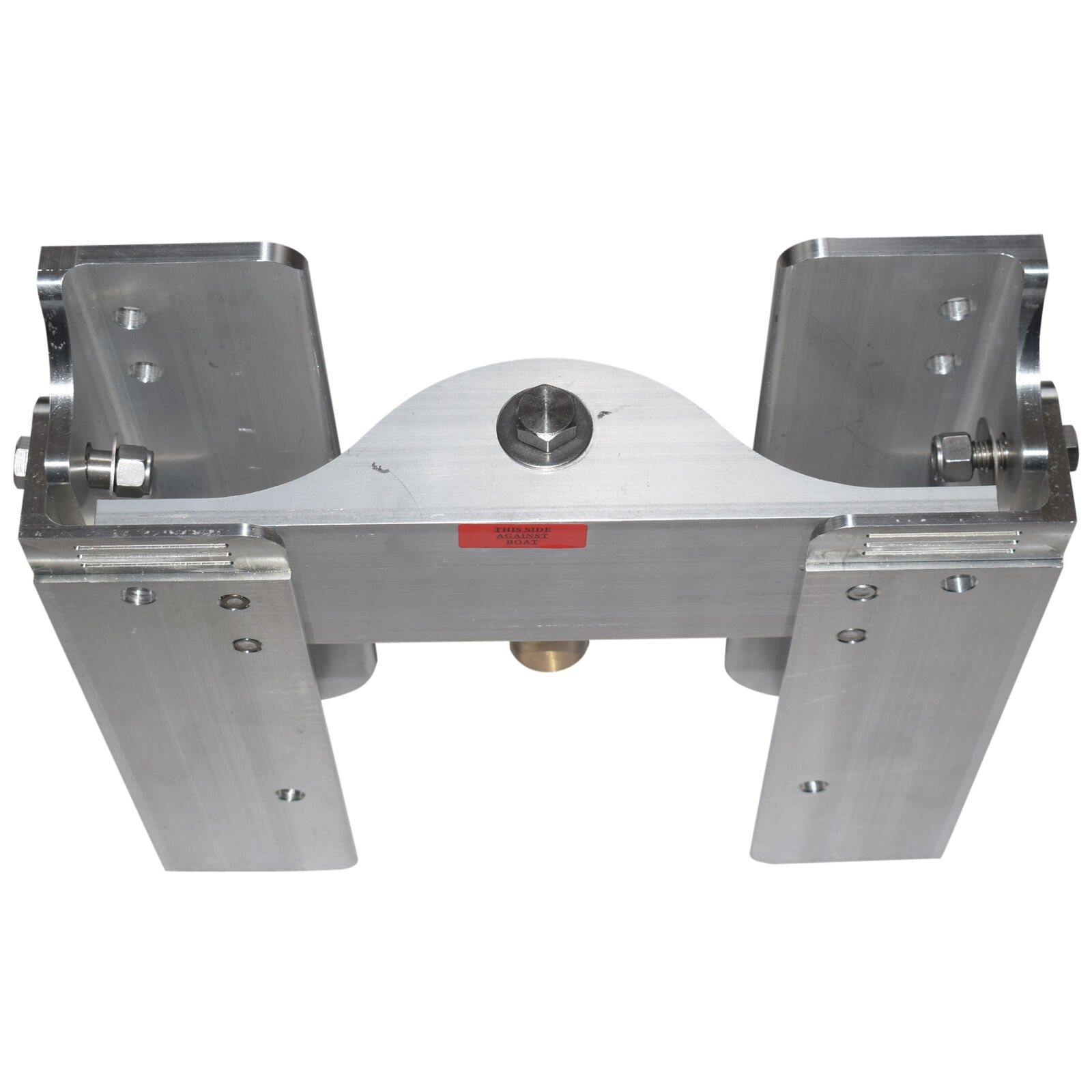

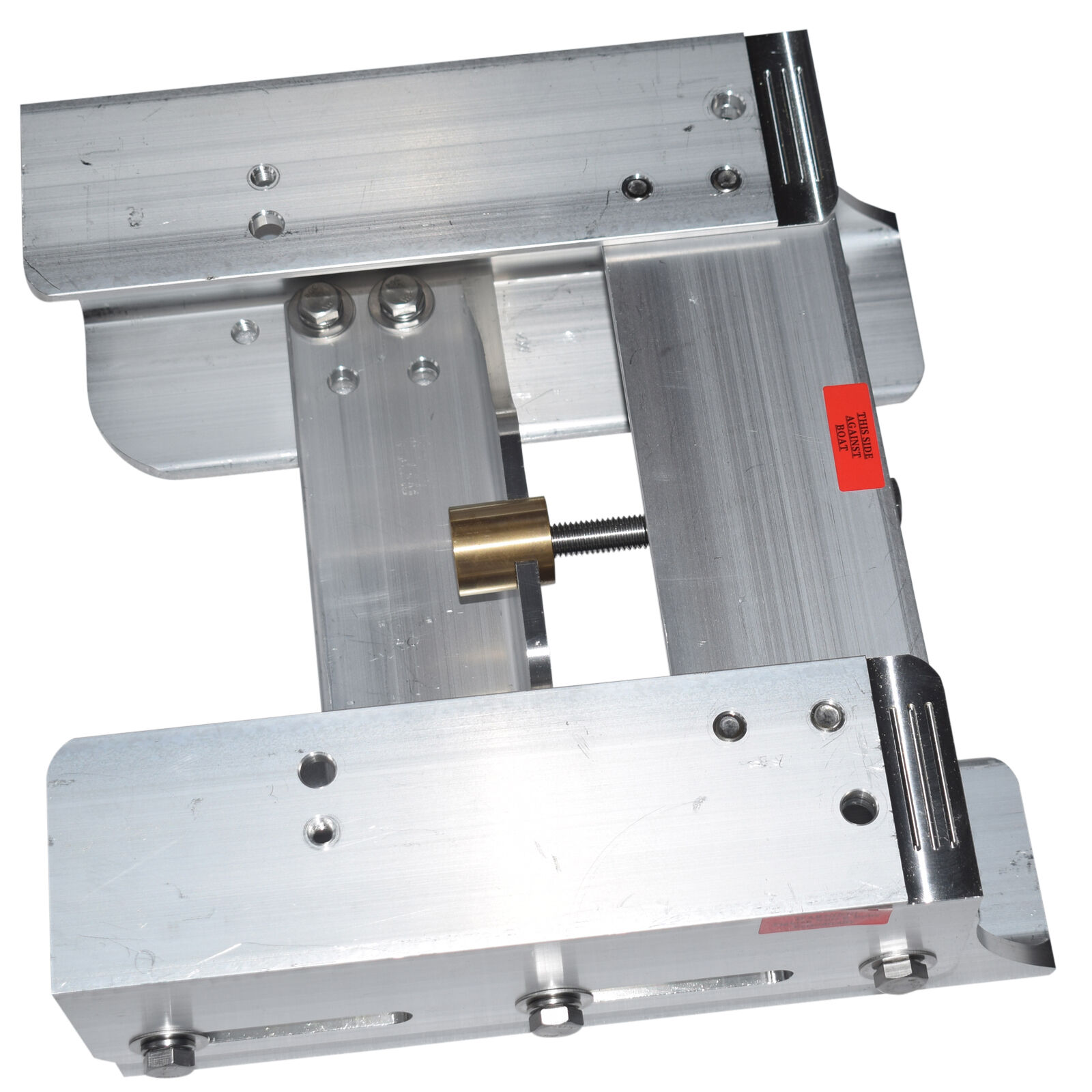

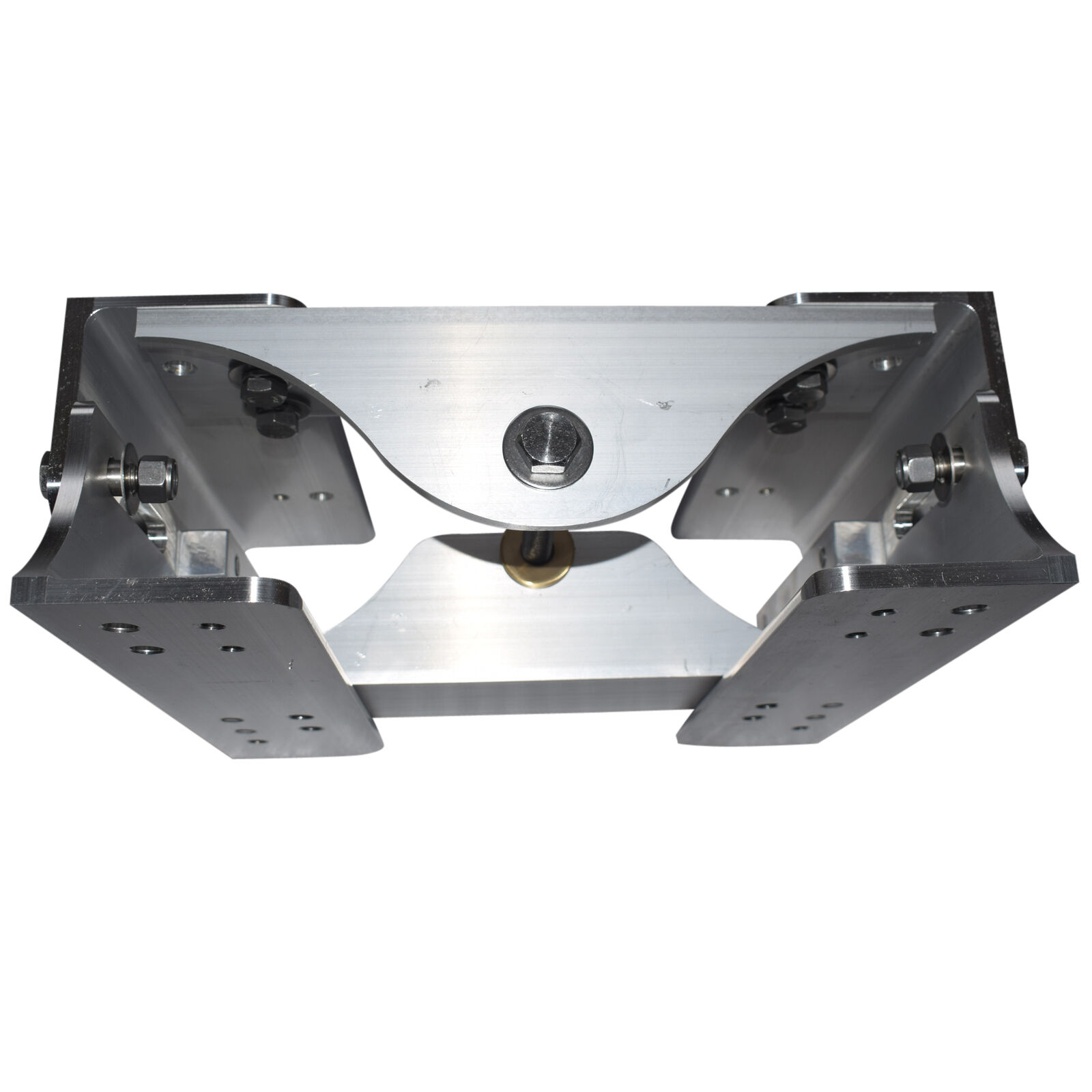

Single adjusting jack plate

Made of high strength polished aircraft quality aluminum

Bronze and brass hardware eliminate binding

Adjusts easily by turning one steel bolt

Offers 4 inches of adjustable vertical movement

6 inches of setback

Weighs 27 lbs

225 maximum horsepower



Please keep in mind that these characteristics listed below can also be indications of other, more serious issues. However, if you are experiencing any or all of the above your boat could be a good candidate for a jack plate implant.

Poor holeshot

Your outboard's not perpendicular (straight up + down) in relation to the water at top speed

If you can trim the engine all the way up without the prop letting go or with no appreciable loss of water pressire at full throttle.

The hull does not seem to 'lift' like it should

1. Here are the pre drilled hole dimensions listed below in inches

Pre drilled holes for 1/2'' stainless hardware

12 7/8'' across the top two holes from center to center

9 7/8'' across the bottom two holes from center to center

8'' of vertical distance between the top holes and bottom mounting holes

SKU BJP-4500
Brand POWEROY
Shipping Weight 12.0000kg
Shipping Width 0.430m
Shipping Height 0.430m
Shipping Length 0.170m
Shipping Cubic 0.031433000m3
Assembled Length 0.170m
