Descriptions:

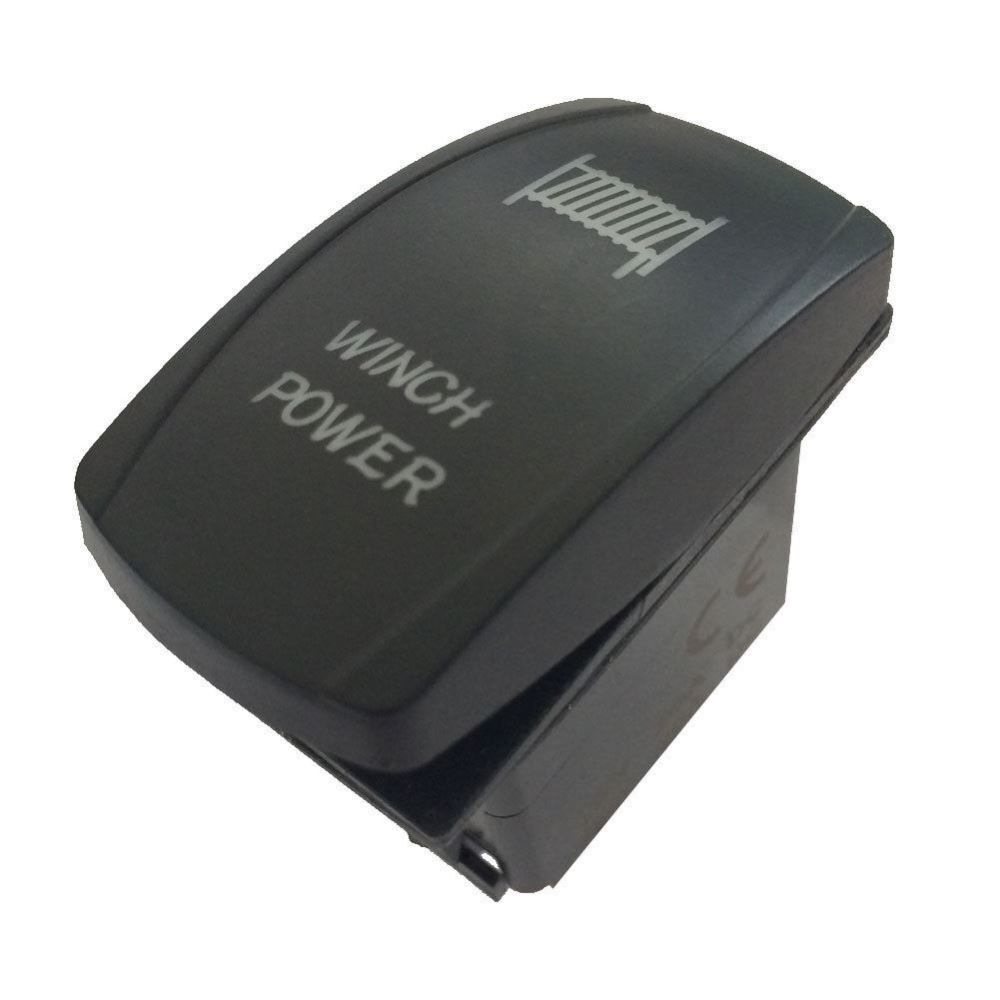

It is a single throw ON-OFF switch designed to operate your 12 volt accessories.
It has a face surface size of 49mm x 25mm and uses a standard din size mounting hole of 36.8mm x 21mm，which is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

Specifications
Single Pole Single Throw ON - OFF switch
Black hard surface rocker.
Laser Etched Legend
Single upper and lower LED light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.

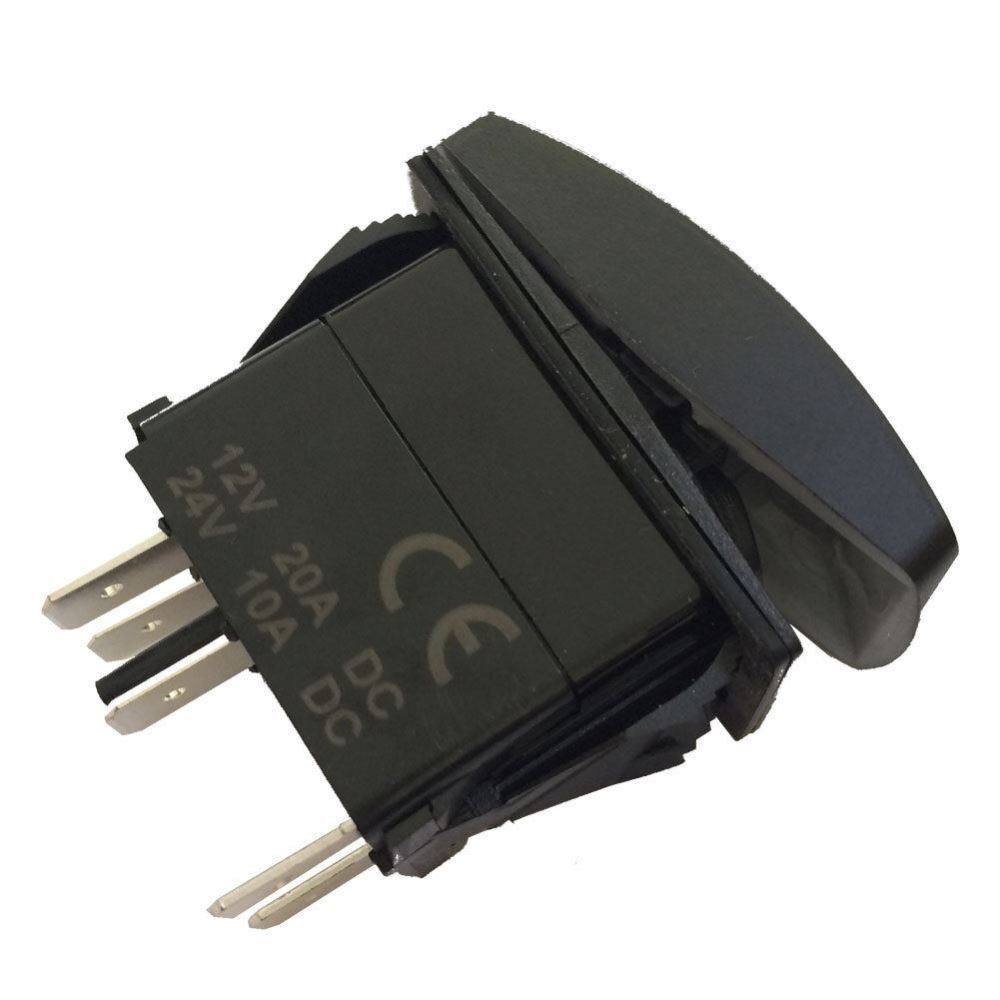

Rated 20A 12V DC @ 10A 24V.

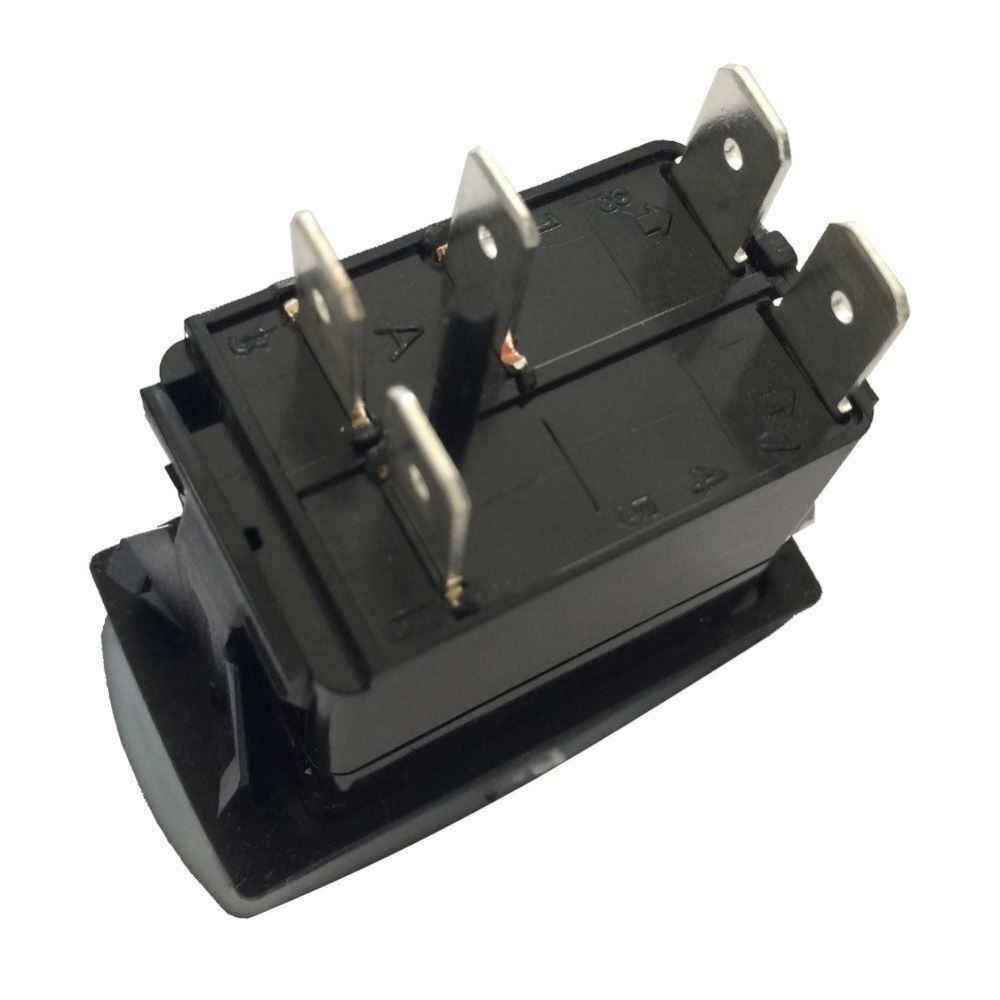

No rear barriers between terminals.
This switch uses the same light configuration as the ARB switches.
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.

Package
1 X ON/OFF Laser Etched Rocker Switch
