Parts for repair only



ITEM NUMBER

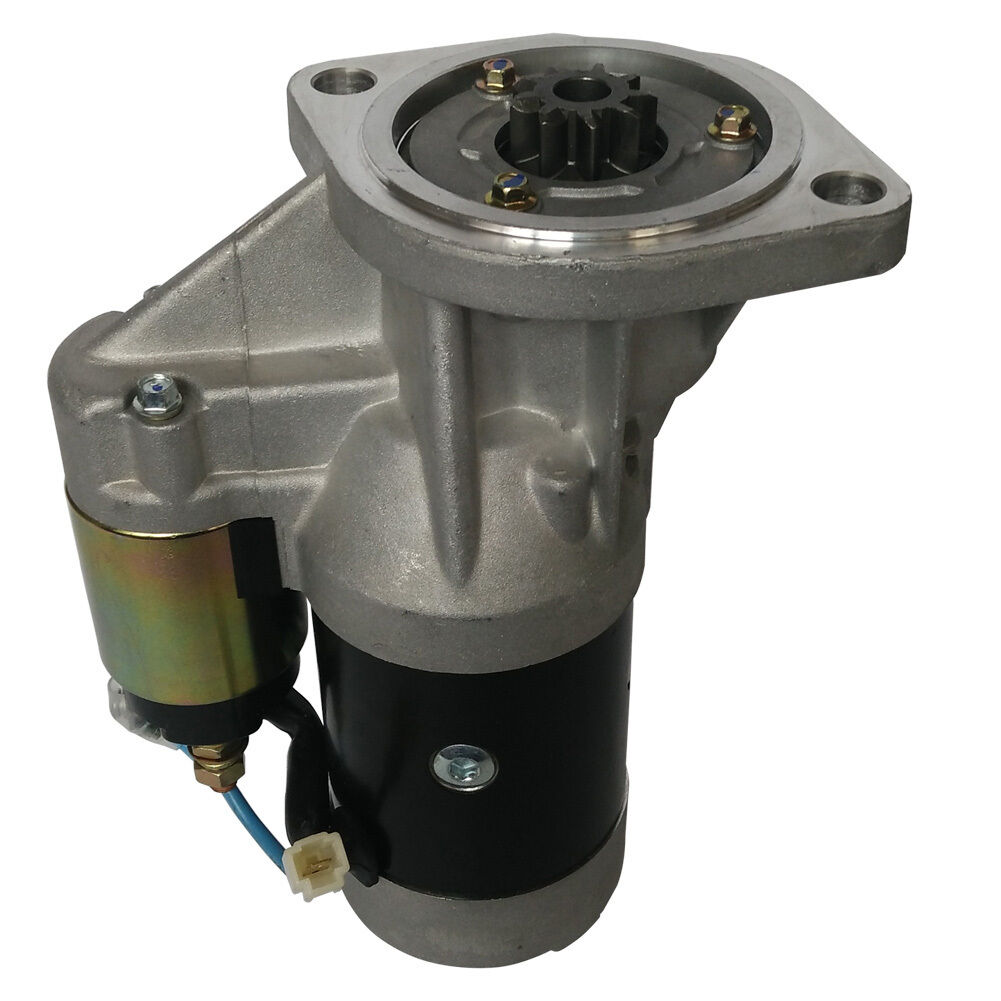

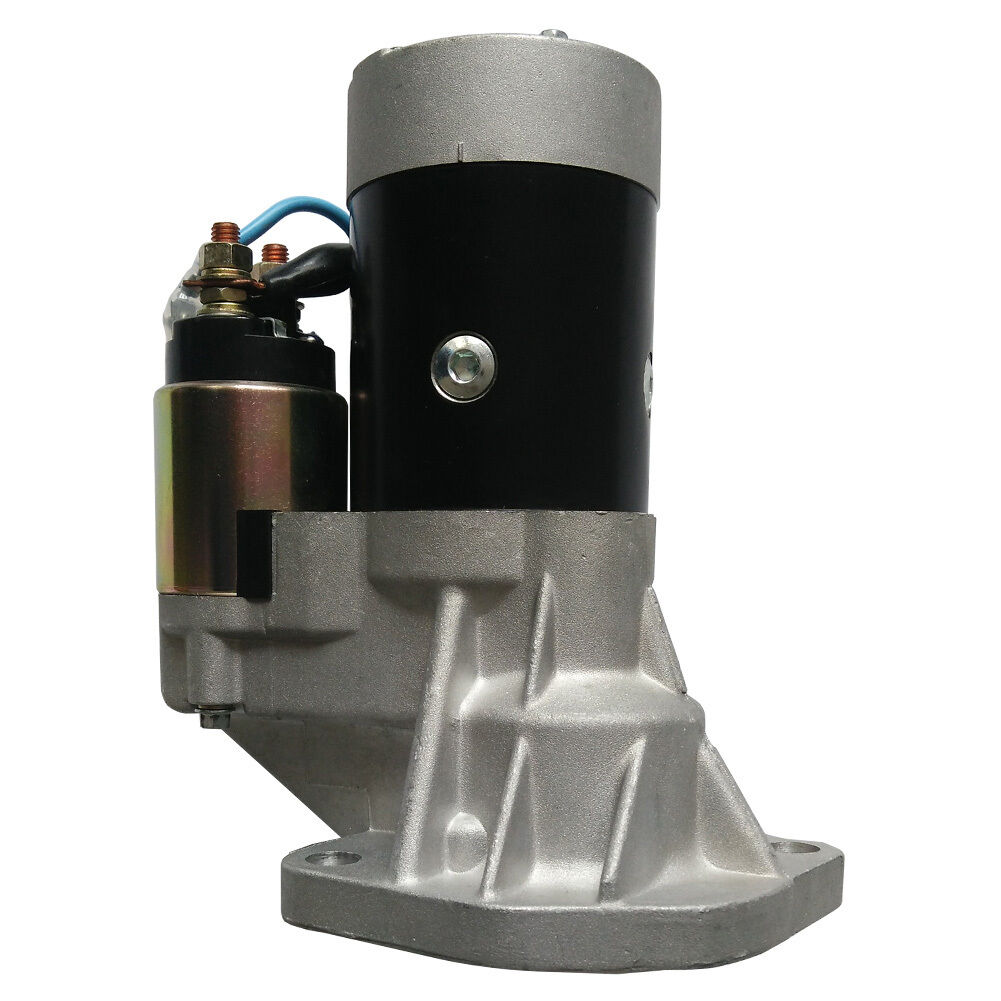

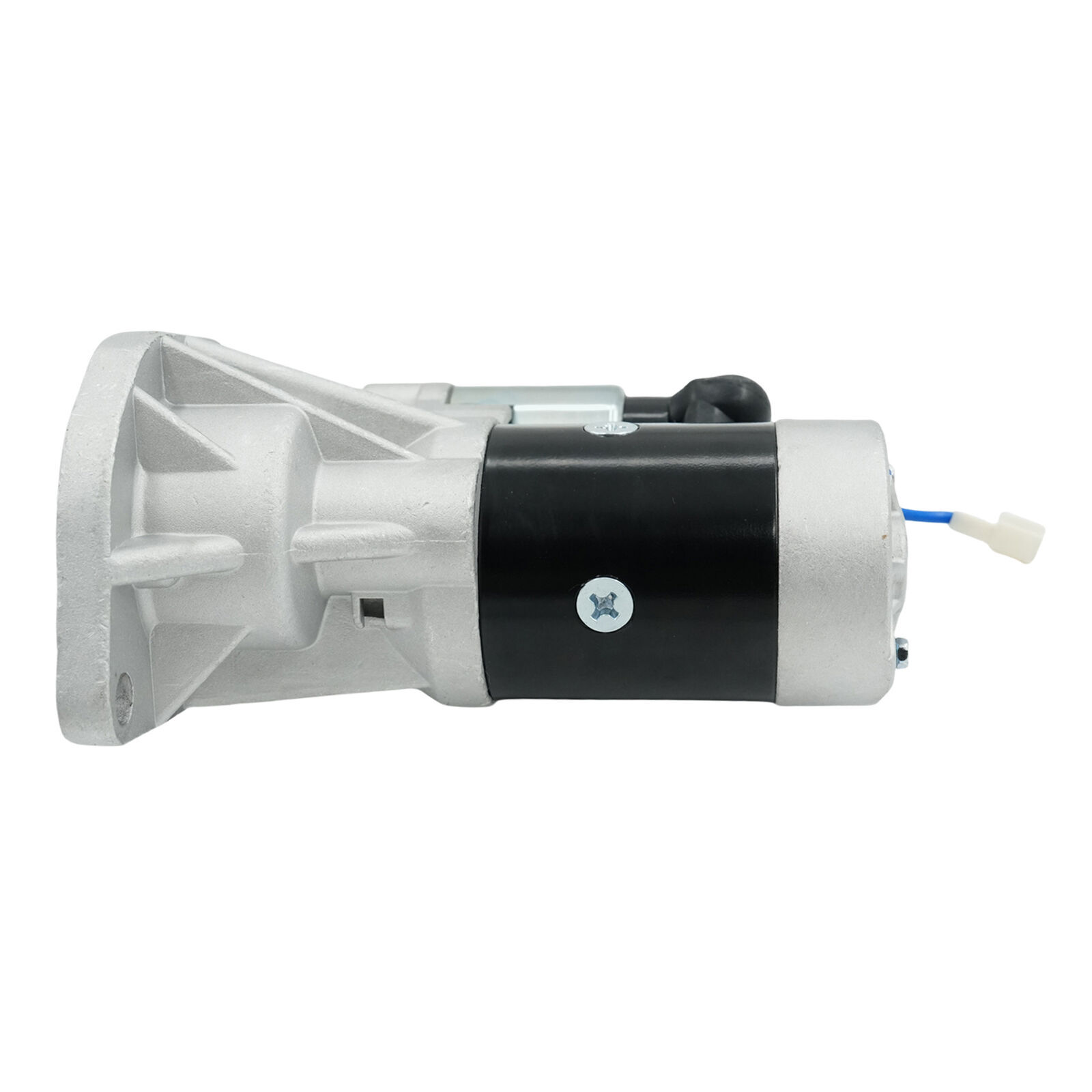

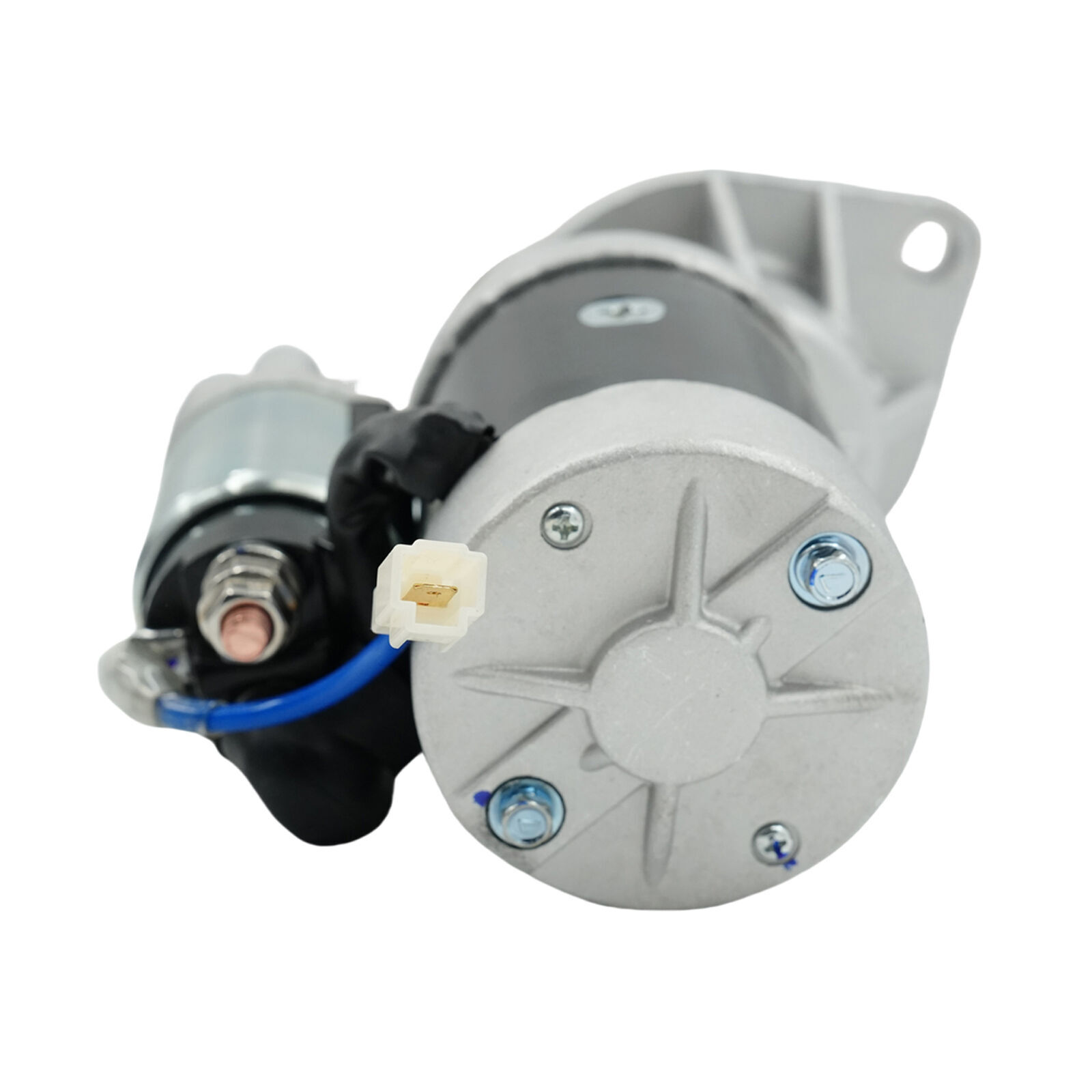

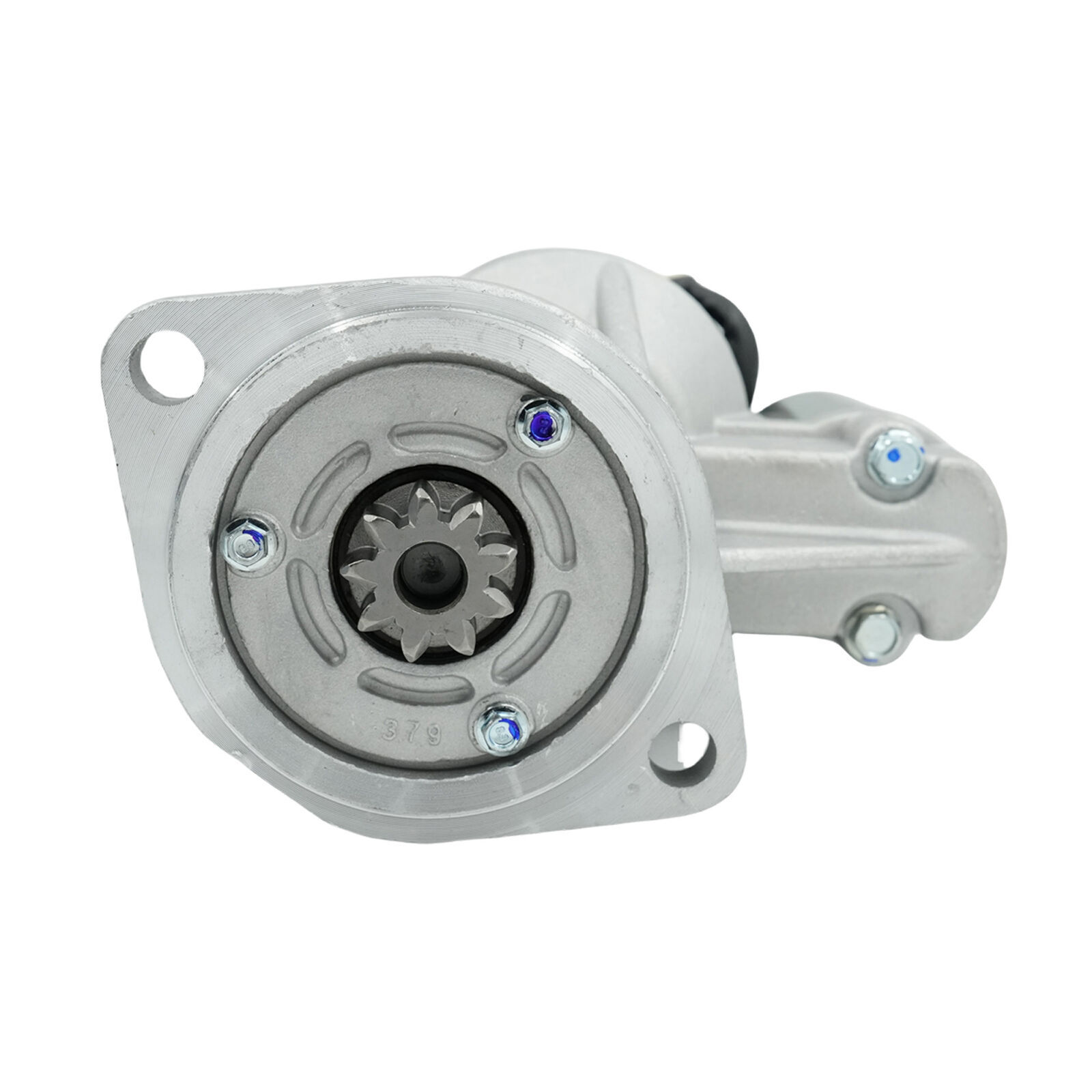

SMOTOR-HLN002M


FEATURES
12V, 2.3KW, 9T, CW


SUIT
Jackaroo engine 4JB1 2.8L diesel 1988-2004;
Jackaroo Turbo engine 4JB1-T 2.8L diesel 1988-2004;
Jackaroo engine 4JG1, 4JG2 3.0L diesel 1992-1998;
Jackaroo including Turbo eng.4JX1 4JX1T 3.0L diesel 1998-2004;
Rodeo TF engine 4JA1 2.5L diesel 1988-1992;
Rodeo TF 4WD engine 4JA1 2.5L diesel 1988-1992;
Rodeo TF 4WD Turbo engine 4JB1-T 2.8L diesel 1988-2003;
Rodeo engine 4JG1, 4JG2 3.0L diesel 1998-2003;


SPECIFICATIONS
Volts (v)    12
KiloWatts (KW)    2.3
Overall Length (mm)    228
Mounting Hole (mm)    13
Mt Holes Centre (mm)    120
Flange Diameter (mm)    95
Nose Cone Length (mm)    12
Pinion at Rest (mm)    10
Field Housing Diameter (mm)    80
Teeth    9TH
Rotation    CW
Pinon Diameter (mm)    32


PACKAGE:
1X Starter Motor

SKU SMOTOR-HLN002M
Brand POWEROY
Shipping Weight 5.0000kg
Shipping Width 0.160m
Shipping Height 0.200m
Shipping Length 0.240m
Shipping Cubic 0.007680000m3
Assembled Length 0.240m
