Fitment

Fit For Mitsubishi (All Manual Engine)

For Mitsubishi Triton ME, MF, MG, MH, MJ ML MN 4WD including Turbo GLX uti engine 4D56 4D56T 2.5L Diesel 86-15;

For Mitsubishi Pajero NA, NB, NC, ND, NE, NF, NG, NH engine 4D55-T 2.3L& 4D56 2.5L Diesel 83-93;

For Mitsubishi Challenger PB 2.5L 4D56 Diesel 2009-2013

For Mitsubishi Challenger PC 2.5L 4D56 Diesel 2013-2015

Express SF engine 4D56 2.5L Diesel 86-90;

Express SG engine 4D56 2.5L Diesel 90-94;

Express SH engine 4D56 2.5L Diesel 94-95;

Express SJ engine 4D56 2.5L Diesel 94-03;

L200 Express MC engine 4D55 2.3L Diesel 82-84;

L200 Express MD engine 4D55 2.3L Diesel 84-86;

L300 Express Starwagon, Delica engine 4D55 2.5L Diesel 83-96;

L300 Express Starwagon, Delica engine 4D56T 2.5L Diesel 83-96;

L300 Express Starwagon, Delica engine 4D56 2.5L Diesel 91-00;

L400 Express including Delica engine 4D68 2.5L Diesel 00-02.

Note:Two Different Types Starter For These Models.Please Check Your Original One Before Purchasing.



Specifications

Volts:12V
Kilowatts:2.2 kw
Overall Length:240mm
Mounting Hole Diameter:M10x1.25
Mount Hole Centre to Centre:105mm
Flange Diameter:77mm
Pinion At Rest:3mm
Field Housing Diameter:80mm
Teeth:10TH
Rotation:CW
Pinion Diameter:32.5mm



Package

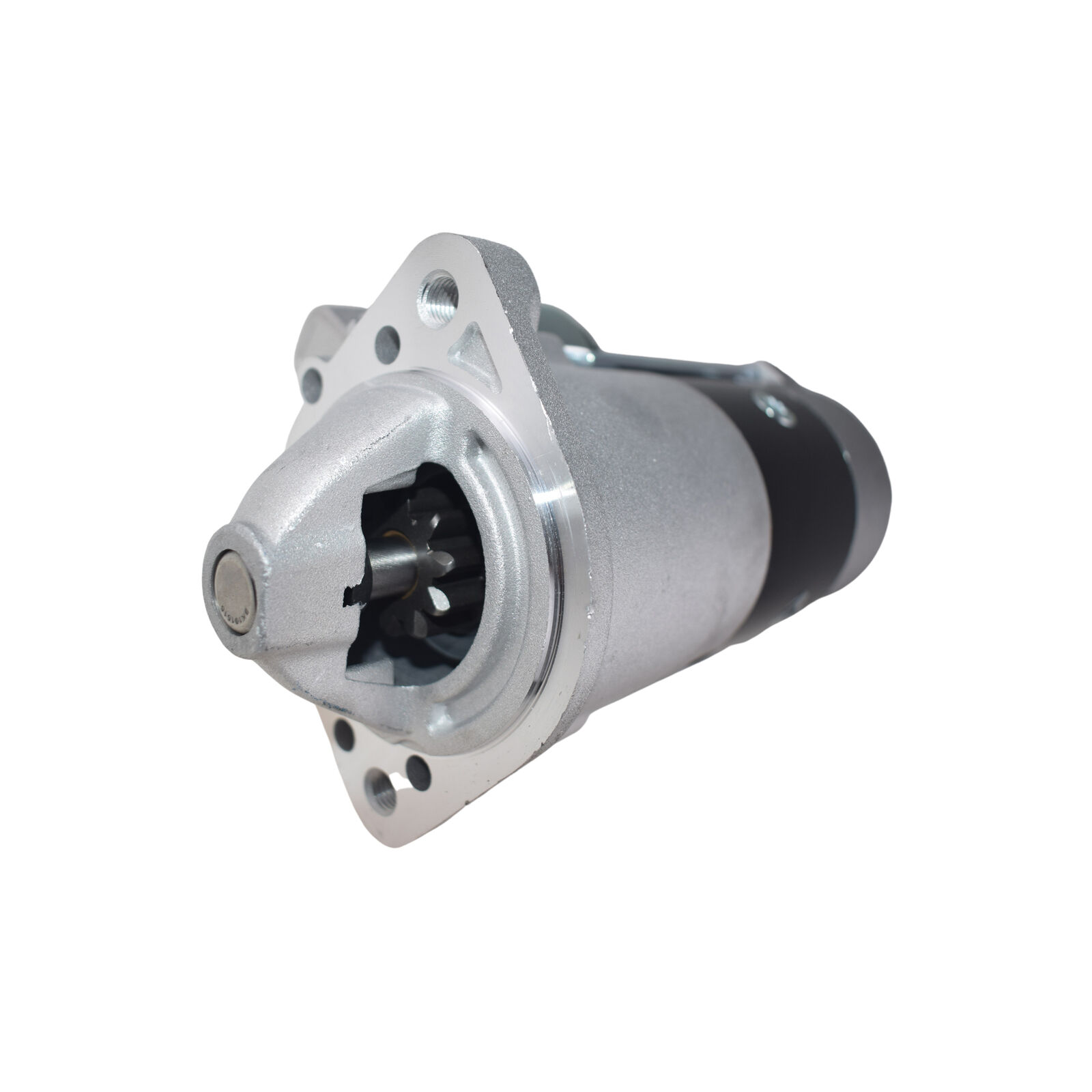

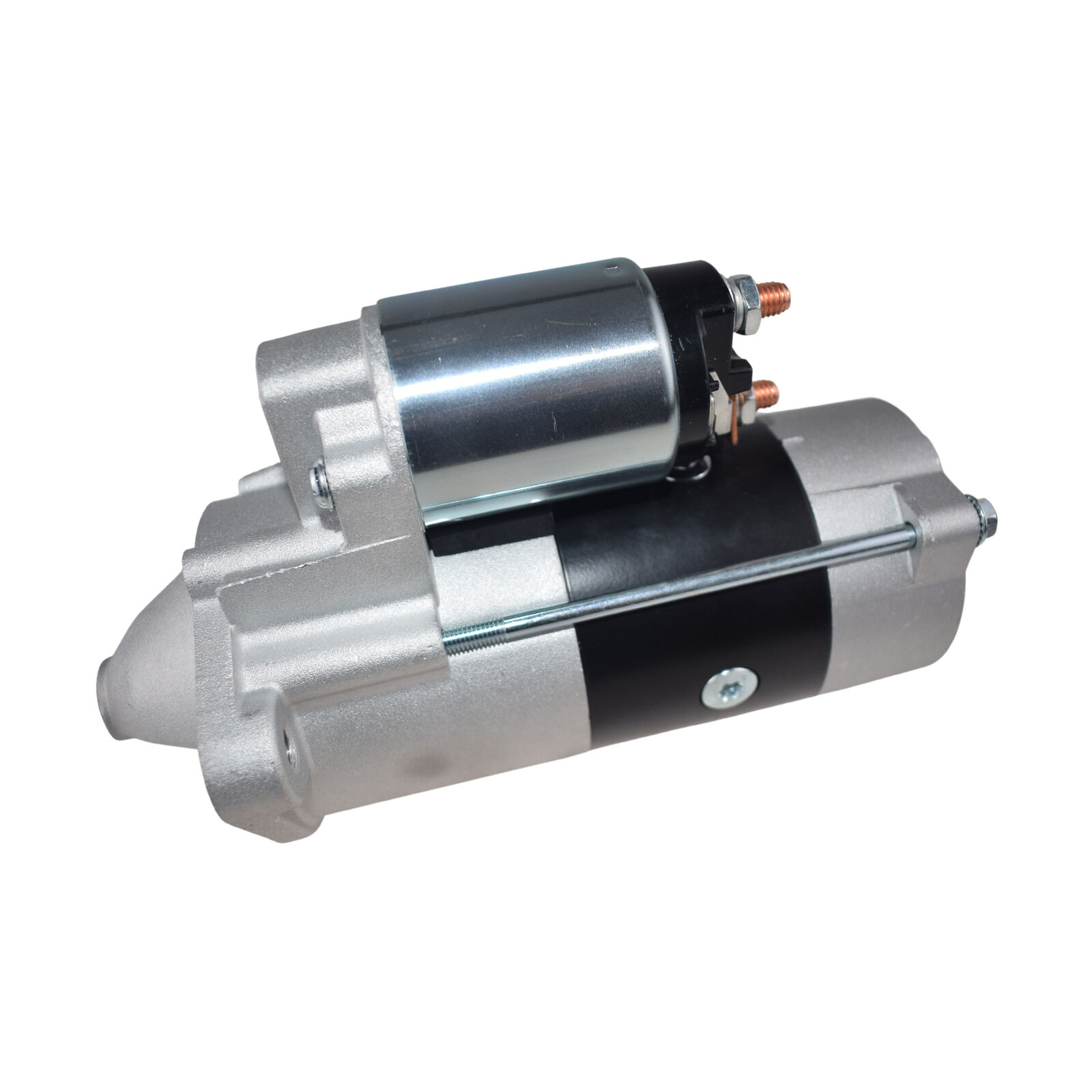

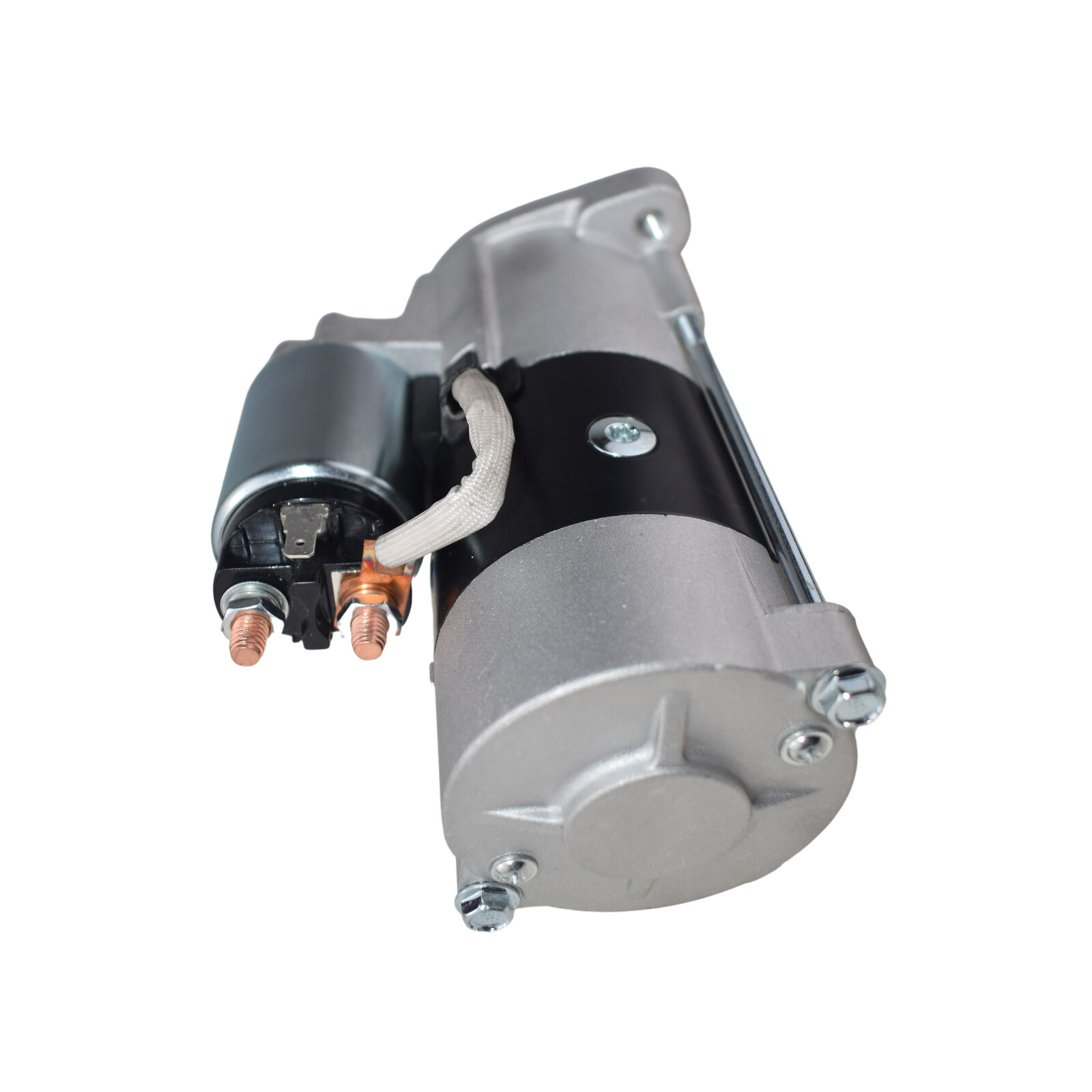

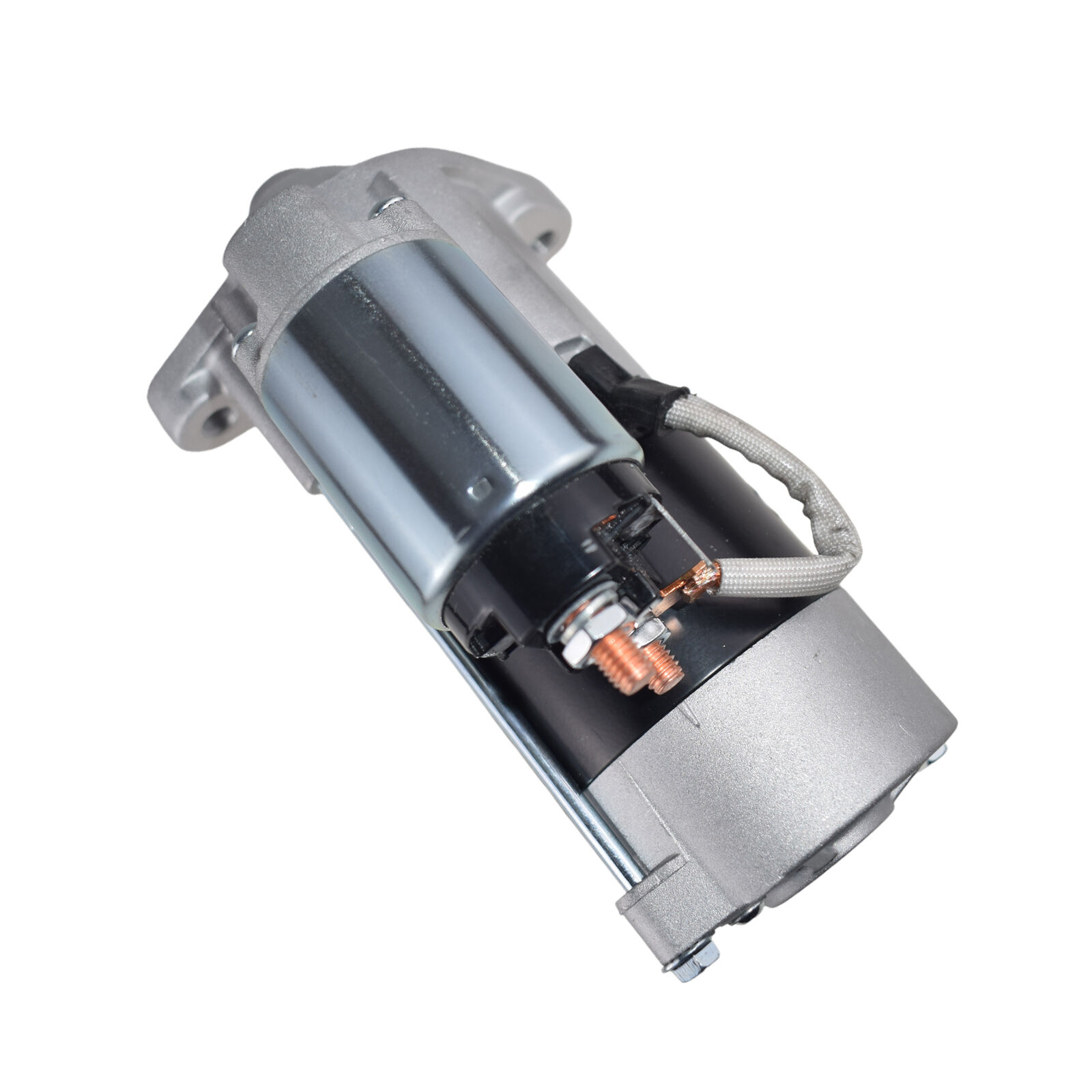

1 x Starter Motor

SKU SMOTOR-MB005M
Brand POWEROY
Shipping Weight 4.7000kg
Shipping Width 0.155m
Shipping Height 0.120m
Shipping Length 0.255m
Shipping Cubic 0.004743000m3
Assembled Length 0.255m
