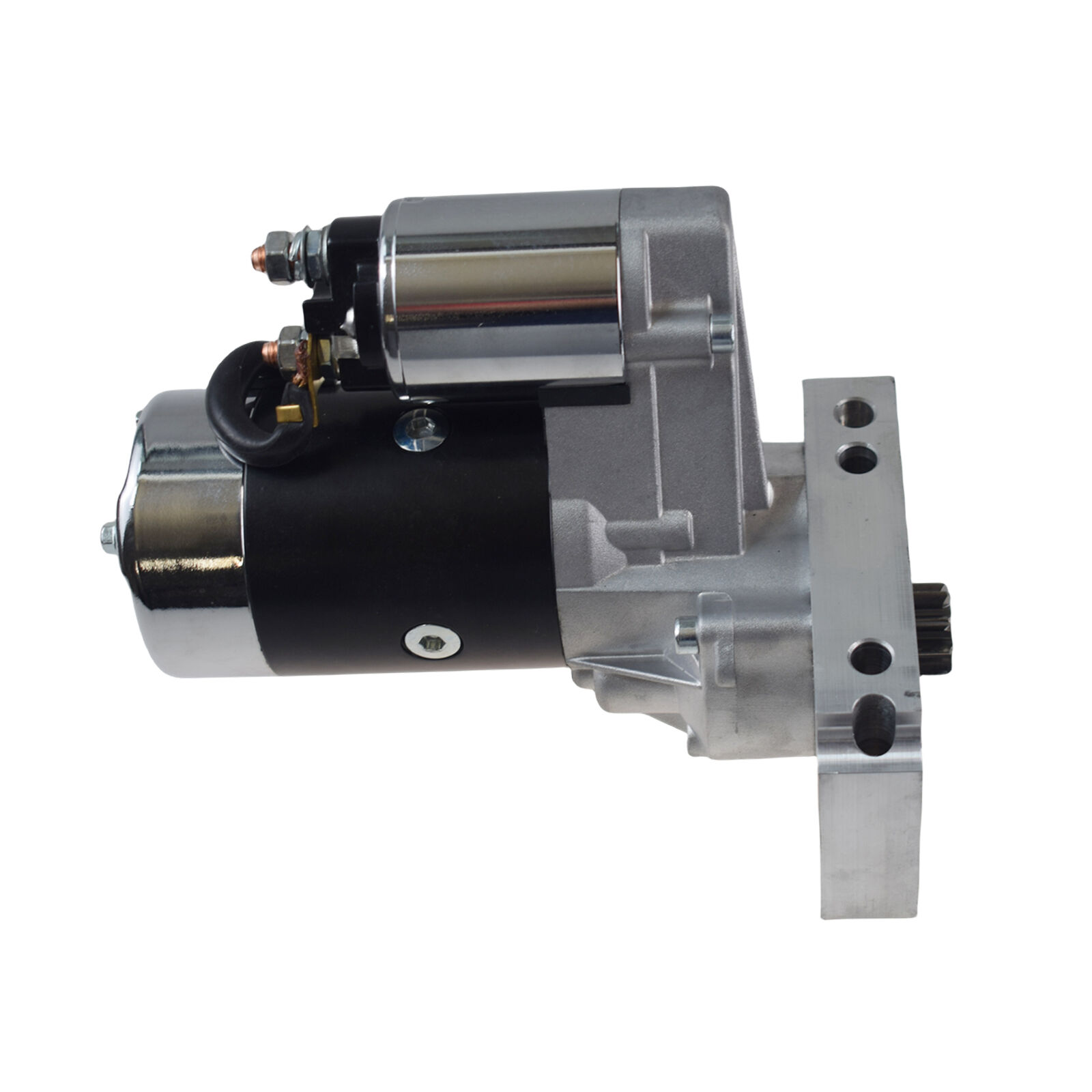

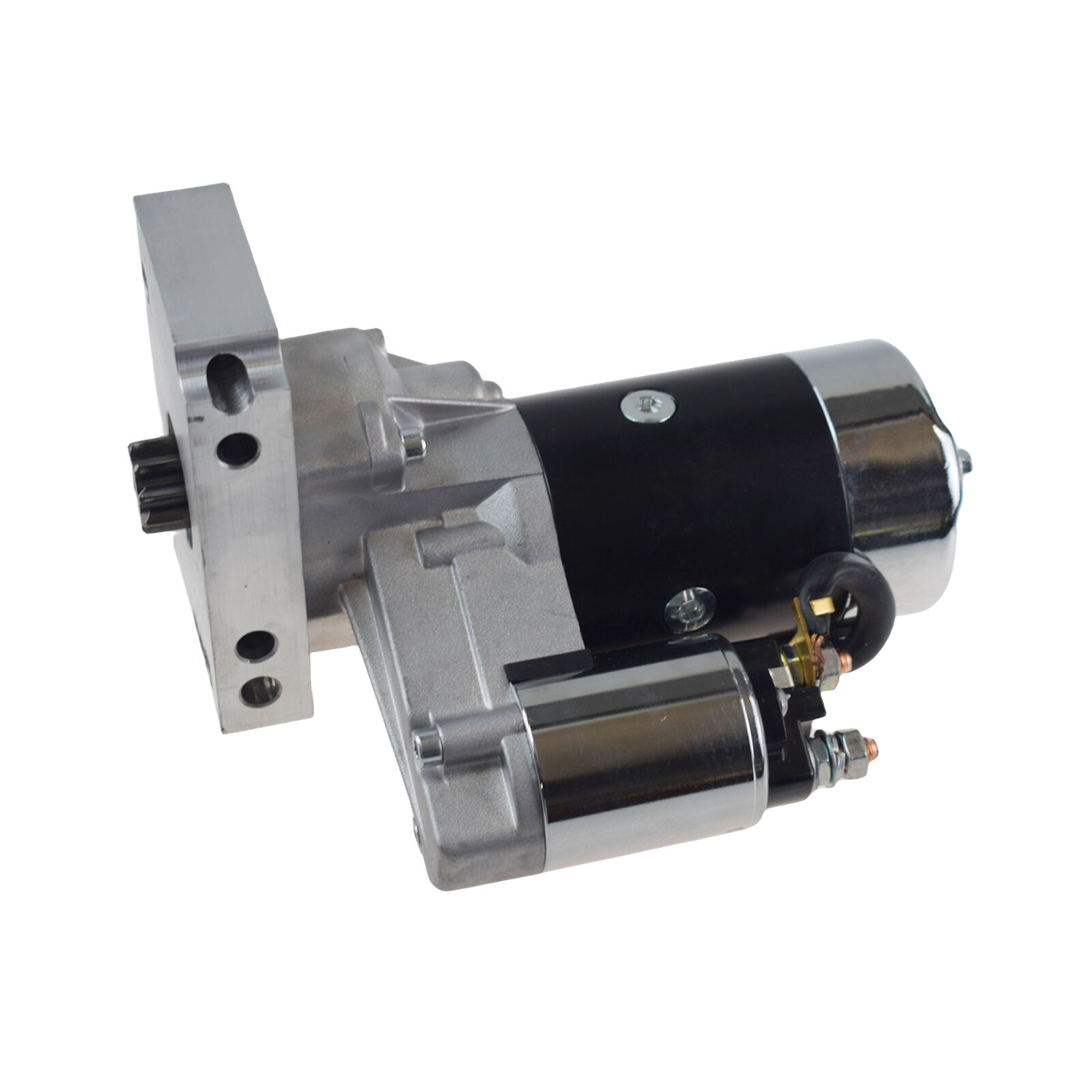

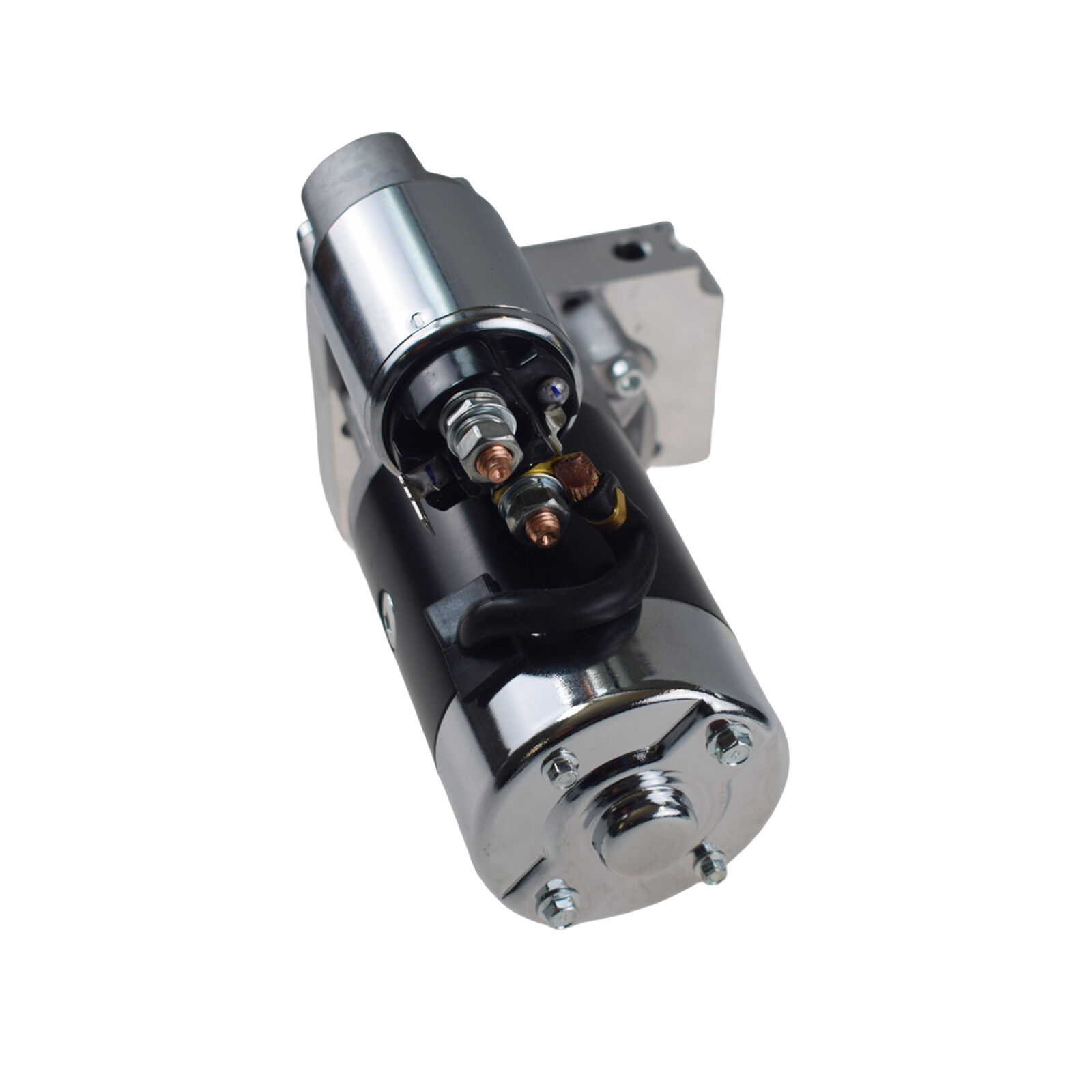

Starter Motor 9 Tooth Fit For Chevy V8 Small Block, Big Block V6 3HP 305 350 454
SKU code: SMOTOR-CV003
Features
High Torque, High Output Gear Reduction Drive Design Spins Your Engine Over Faster.
50% More Cranking Torque
Perfect For High Compression Or Supercharged Engines.
Straight Bolt Mounting Plates, Works With All 153 Tooth Or 168 Tooth Ring-Gears On All Small Block And Big
Block For Chevy V8 And For Chevy V6.
Compact Off-Set Design, Allows More Header And Chassis Clearance.
Capable Of Cranking A 15:1 Compression Engine That Is Up To 700 Cubic Inches.
3HP MOTOR
Ideal For High Compression Engines
Soolid Billet Aluminum Mounting Block
Torate Motor Position For Additional Clearance
Full Ball Bearing Design
Compact Design For More Clearance Between Oil Pan & Headers
Larger Field Windings,Stronger Armature, Bigger Brushes And 1 Inch Longerh Than The S1935N
Specifications
Color: Black
Material: Aluminum
Interchange Part Number: for 18493, for 18493N
S114-254S1BX, S114-823SBX, SD114-254S1
Replacement for Pp106, Pe106, 91-25-1201
Hatachi: S13-65C, S13-65S1, S13-65S1BX
Type: 3HP
Tooth Flywheel: 153 and 168
Number of Teeth: 9
Voltage: 12V
Power: 2KW / 2.68HP
Rotation: CW
Starter Size: for Mini Type
Gear OD: 0.988in / 25.1mm
Version: High Torque Version/3-Clocking Positions
Mtg Ear 1 Hole: 10mm Unthreaded
Mtg Ear 2 Hole: 10mm Unthreaded
Mtg Ear 3 Hole: 10mm Unthreaded
Mtg Ear 4 Hole: 10mm Unthreaded
Fitment
This Starter Motor Comes With 9-Tooth
Fit For Chevy fits GMC HD Starter Motor 3HP 305 350 454
Fit For Chevy-V8 Small Block, Big Block& V6 with A/T& M/T with 153 or 168 Tooth Ring Gear
OEM(s) Replaced: for Chevrolet, for GMC Motors
Package
1 x Starter Motor

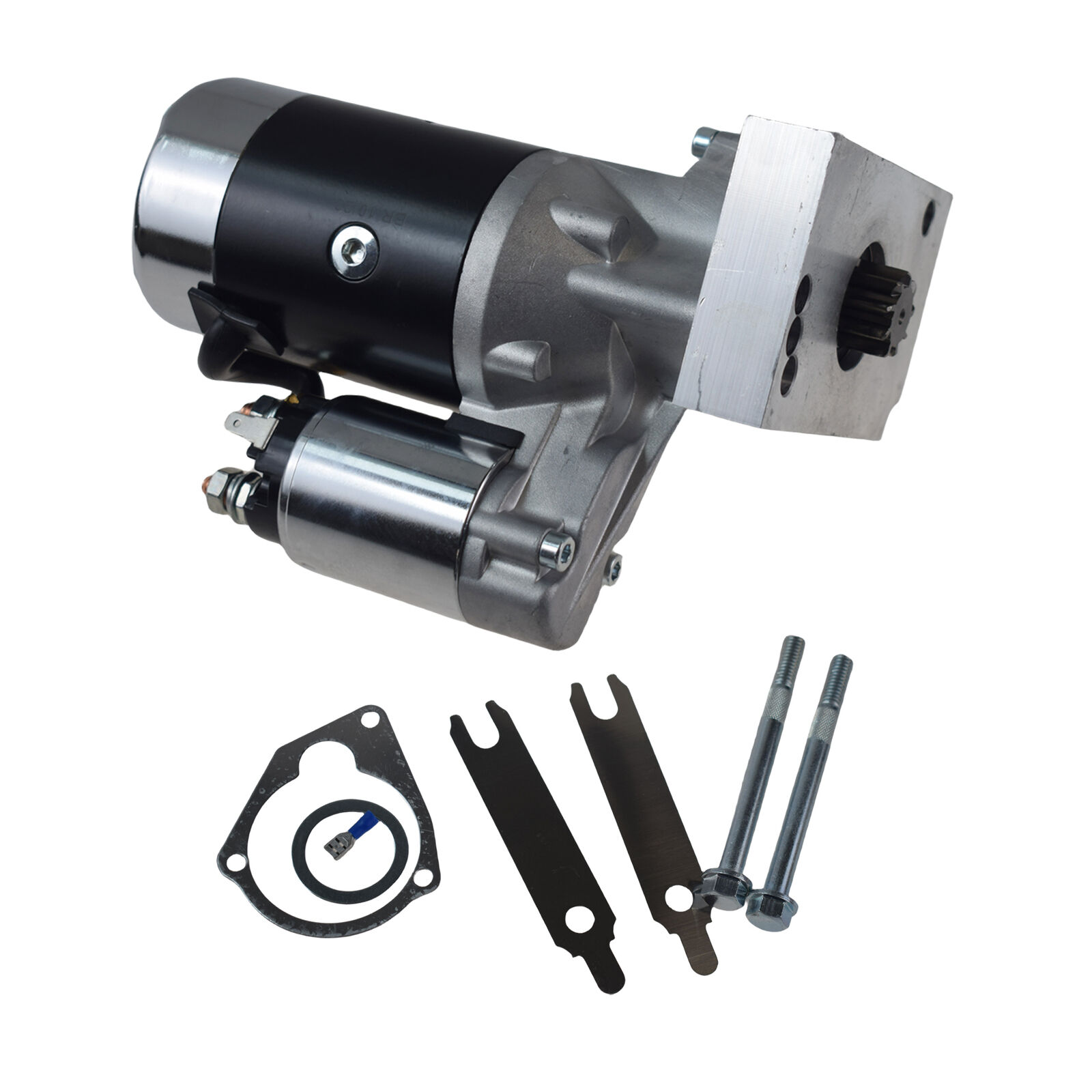

Mounting Pad, Mounts Bolts, Shims & Handware As Picture Shown
SKU | SMOTOR-CV003 |
Brand | POWEROY |
Shipping Weight | 5.5500kg |
Shipping Width | 0.190m |
Shipping Height | 0.145m |
Shipping Length | 0.290m |
Shipping Cubic | 0.007990000m3 |
Assembled Length | 0.290m |
